Bronze Sound Isolation Booths

Specifications

SINGLE WALL – BRONZE ISOLATION BOOTH SPECIFICATION

Main Construction
Our Single Wall Bronze Vocal Booths are made from a combination of MDF & Acoustic Cloth Panelling, 22mm thick - carefully engineered to create a sealed and acoustically sound environment. Our Single Wall Bronze Booths can be upgraded to a Twin wall design at any time. Choose from two standard colour finished Anthracite & Light Grey.

Double Acoustic Door Window
Each Bronze Booth comes standard with a double acoustic wall window measuring 30cm wide x 70cm tall. The composition of all Bronze Booth windows is:
6.4mm Double Acoustic Laminate Glass
6mm Air Cavity – Black Spacer
6.4mm Double Acoustic Laminate Glass

Passive Ventilation System
All Bronze Booths come standard with an acoustically baffled, external ventilation system, keeping the air in your booth clean, fresh & flowing.

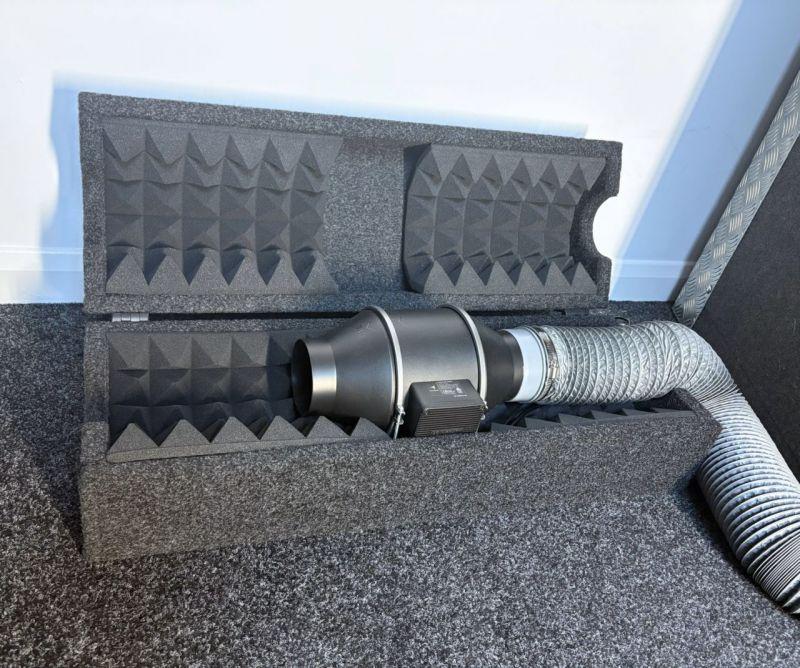

The ventilation can be upgraded to an active ventilation system - To stop vibrational sound transfer, our air flow sound baffled ventilation system sits separately from the booth and is connected via a 100mm acoustic lagged ventilation duct hose. This unique system cleverly removes warm stale air from ceiling level and pulls fresh cool air in, at floor level. Each Ventilation System is remotely controlled for ease of use. NOTE – larger booths have multiple vent outlets.

Cable Management
A fully sealed cable pass is mounted to each vent wall panel, allowing up to 10 cables to be passed through each, allowing plenty of space for ethernet, audio, computer and power cables . Additional cable passes can be added to all models to suit your specific requirements. If you require specific wiring looms, we can fit and supply custom patch panels to all of our booths, keeping your cables tidy and easy to use. Contact us to discuss your requirements.

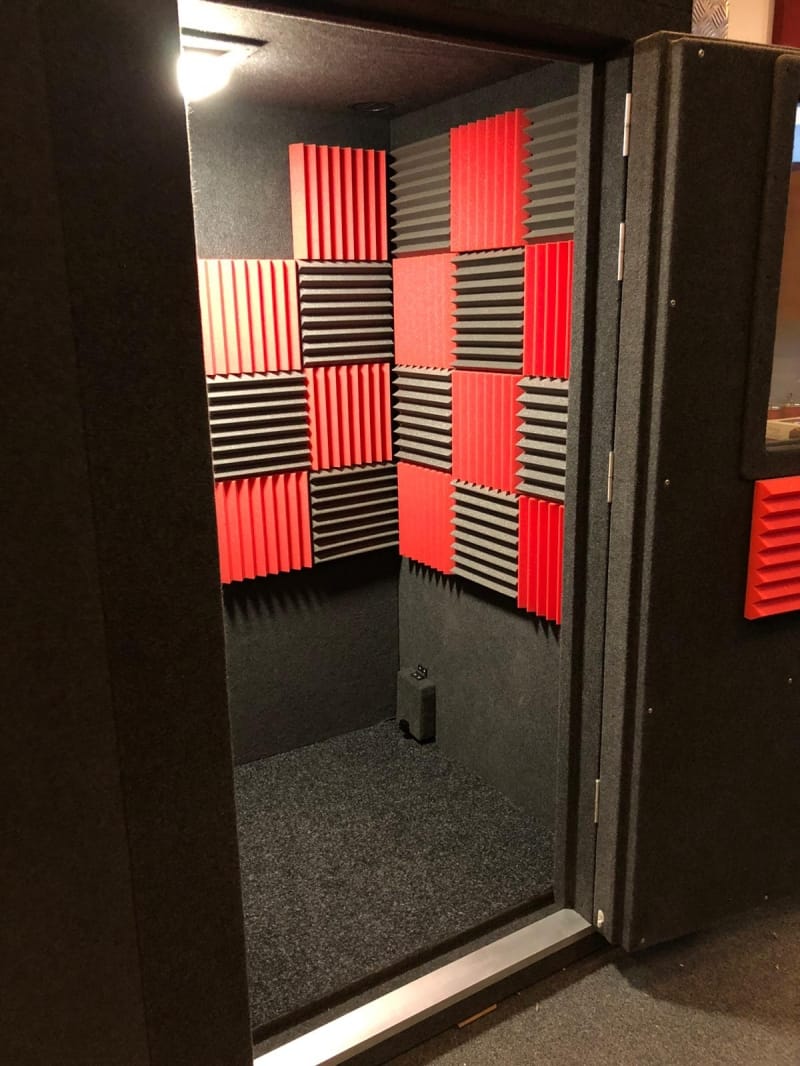

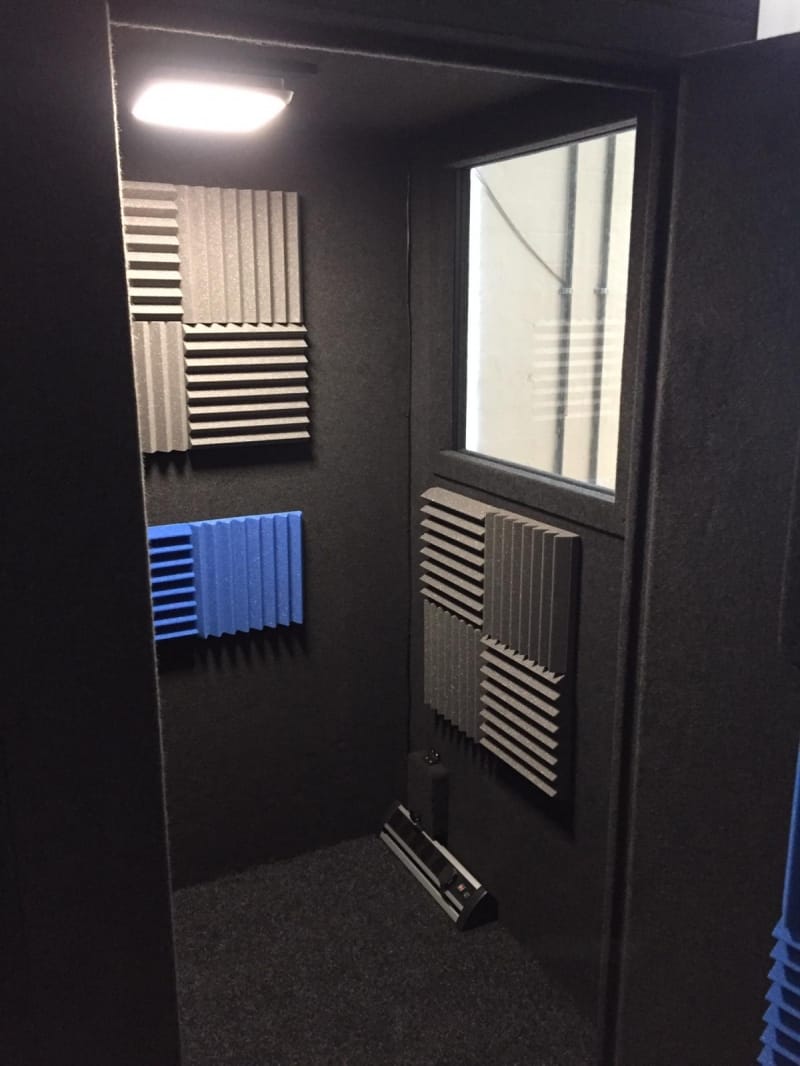

Acoustic Studio Foam
Each Bronze Booth is finished as standard in a high-grade acoustic cloth carpet, available in anthracite or light grey as standard. In addition, all Bronze Booths are supplied with a 2” thick specialist acoustic foam panelling to help you achieve a Live or Dead acoustic space internally whenever required – all panels simply attached to the internal walls with Velcro and can be rearranged at any time.
Need more? – see our optional extras for additional acoustic lining options from our contemporary Acoustic Slat Wall Panels to our deep fill Bass Traps.

LED Lighting
Let there be light – your Bronze Booth comes standard with Circular LED Lighting, controllable with the same remote that controls the ventilation system. Each light is switchable from a warm or day light setting to suit your preference.

UPGRADE – check out our colour changing Acoustic Studio Panel Lights and our LED 6060 RGB Lights below in the optional extras section.

Remote Plug As mentioned above, the lighting and ventilation systems are controllable via remote. Each Bronze Booth comes standard with remote switching.

Order Direct From The Manufacturer

At KUBE we only deal directly with the client. We do not supply our products to wholesalers or retail outlets. Supplying direct ensures we can offer you THE best quality sound isolation enclosures at the most competitive prices. Dealing directly with the manufacturer gives you many benefits including: superior product knowledge and advice, large stock range, ability to order bespoke or custom products and optional extras, superior customer services, ongoing support, extended guarantee periods and the best possible prices. We currently manufacture hundreds of different sizes of sound isolation enclosures with three different levels of sound isolation (Bronze, Silver and Gold).

Modular Construction

We work closely with our customers to address noise problems across a diverse range of industries. Each sound isolation enclosure is designed to meet specific noise reduction specifications. As a "room-within-room" it provides optimum sound insulation and room acoustics for a variety of applications. KUBE sound isolation enclosures consist of high grade multi layered acoustical panels, completely pre-fabricated in our own manufacturing facility in the UK. All sound isolation enclosures can be fully constructed within a few hours without the use of any specialist tools other than a cordless screwdriver drill. The KUBE modular design provides a cost effective, long term sound isolation solution, designed not only to last a lifetime but also because of its portable modular design it can move with you were ever you go. Each sound booth can be easily dismantled and setup again in a different location.

Acoustic Glass Window

Each sound isolation enclosure door is supplied with an acoustic glass window. The acoustic window comprises of specialist double glazed acoustic glass panels with an air space between. Only specialist acoustic glass is used in our sound isolation enclosures because of their superior noise reduction capabilities. The inclusion of a window does not reduce the sound reduction capabilities and actually improves interior sound reflections. The glass window enables communication between people outside and inside the enclosure either by hand signals, written media or via an audio link through the sound booth cable passage. Optional acoustic glass windows can also be added to any sound isolation enclosure if required.

KUBE Air Flow Ventilation System

Customers can purchase any KUBE sound isolation enclosure with or without an air ventilation system. The KUBE Air Flow Ventilation System eliminates heat build-up and regularly exchanges the internal air content during long term use. The KUBE Silent Air Flow Ventilation System combines the above benefits whilst utilising a silent electric fan.

Five Year Product Guarantee

When you buy a new KUBE sound isolation enclosure you can rest assured that you are covered by a comprehensive 5 Year product guarantee. You should note that most suppliers do not offer the same type or length of guarantee and typically offer the standard minimum 1 Year guarantee.

Aftercare

We are committed to supplying the most reliable sound isolation enclosures to clients in the UK and around the world. Our products are designed to last a lifetime, however should a problem occur at any time in the future, we promise to look after you. We know our success depends upon your success and complete satisfaction. As a specialist manufacturer we will always be able to supply replacement parts, upgrades and options if required.

UK & Worldwide Shipping

From our production facility in the UK we manufacture and ship our products to any location in the world. We offer a fast, flexible and affordable UK and worldwide shipping service to your particular destination. As each sound isolation enclosures size is different (shipping costs are dependent upon size and weight) we will ensure that we provide you with the most economical shipping quotation. We utilise many different companies and ask them to individually quote for each shipping service. This ensures the latest competitive price which we pass directly onto you the customer.

UK Showroom

Visiting our showrooms is a fantastic way to see at first hand the high quality of our sound isolation enclosures. Our purpose-built showroom is located in Ripon, North Yorkshire. Apart from seeing our sound isolation enclosures close up it really is a unique opportunity to discuss your requirements face to face and experience a sound reduction demonstration. We can show you specific decibel (dB) readings of both inside and outside the different sound isolation enclosures we manufacture.
